Description
For an optimal harvesting process, we have put together a harvesting set especially for nuts, such as walnuts. The set includes the fruit picker 05 - depending on your choice, with or without a cordless screwdriver from Metabo (you will need your own cordless screwdriver to operate it) and the nut sign. The sorting table has additional nut struts to enable the sorting of small fruits, as well as a total of 6x Euronorm folding boxes for a smooth harvesting process. Nothing stands in the way of your walnut harvest.
What's Included:
- Obstraupe 05+
- Sortier 02
- Nutshield for Fruit Harvester
- Strut Set for Sorting Table
- Set of 6 crates
Specifications:
FRUIT COLLECTOR:
— 74 cm working width, 60 cm wide collecting roller with 44 slats made of food-safe plastic
— 500 - 1000 kg picking capacity
— Fruit box 60 cm x 40 cm, box height up to 18 cm (34 L capacity)
— Single-axle design, hand-guided without wheel drive
— 24“ solid rubber wheels PU
— Base frame made of stainless steel (V2A, glass bead blasted)
— Handlebar and covers made of aluminum (AIMg2), height adjustable
— 7.5° wheel inclination and wheel deflectors to reduce collision damage
— Gross weight (WITHOUT cordless screwdriver) 33 kg
— Pack size 75 cm x 110 cm x 90 cm (folded), transport size 80 cm x 110 cm x 100 cm

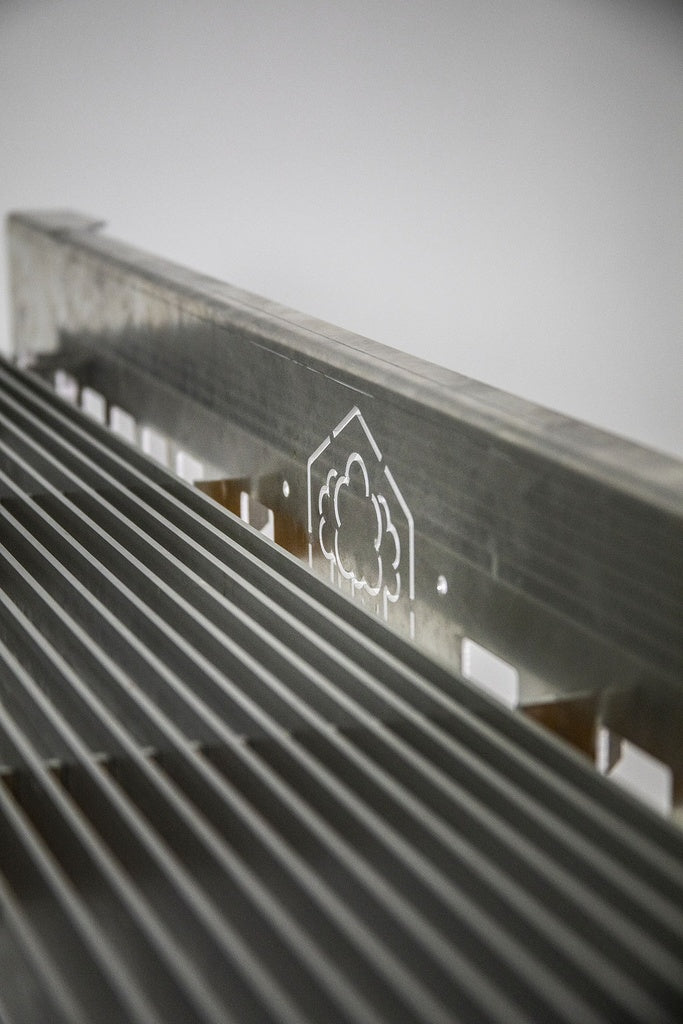

SORTING TABLE SORTIER! 02
— Frame made of aluminum (surface optionally anodized), ends and funnel made of stainless steel (V2A)
— Legs individually foldable (to be fixed with 1 locking pin per leg) and continuously height adjustable (to be fixed with 1 fixing pin per leg )
— Maximum sorting height 110 cm
— Variable spacing: 27 mm | 42mm | 57 mm (with additional slats from 12 mm)
— Stainless steel funnel for direct transfere into a large box or trailer
— Device for hanging in fruit crates and buckets (max. load app. 15 kg/ side) as well as sorting into bags ( optional with bag holder accessory)
— Transport safety device for slats
— Transport size (with hopper, legs folded): 161 cm x 73 cm x 33 cm
— Packing size (dismantled in carton): app. 140 cm x 30 cm x 52 cm
— Further accessories (additional slates, wheel set, bag holder) available separately
